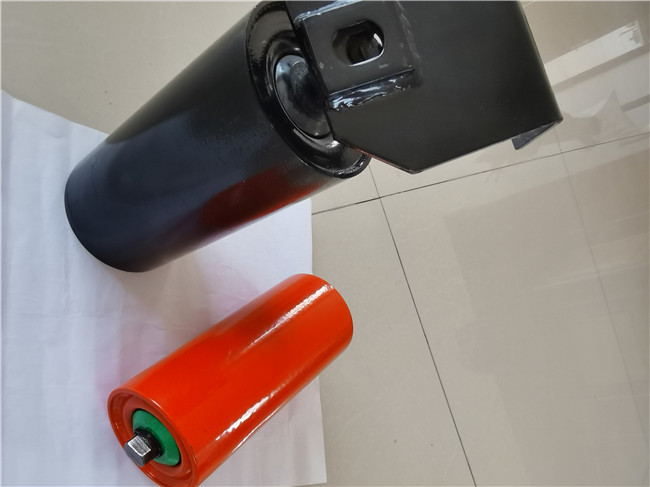

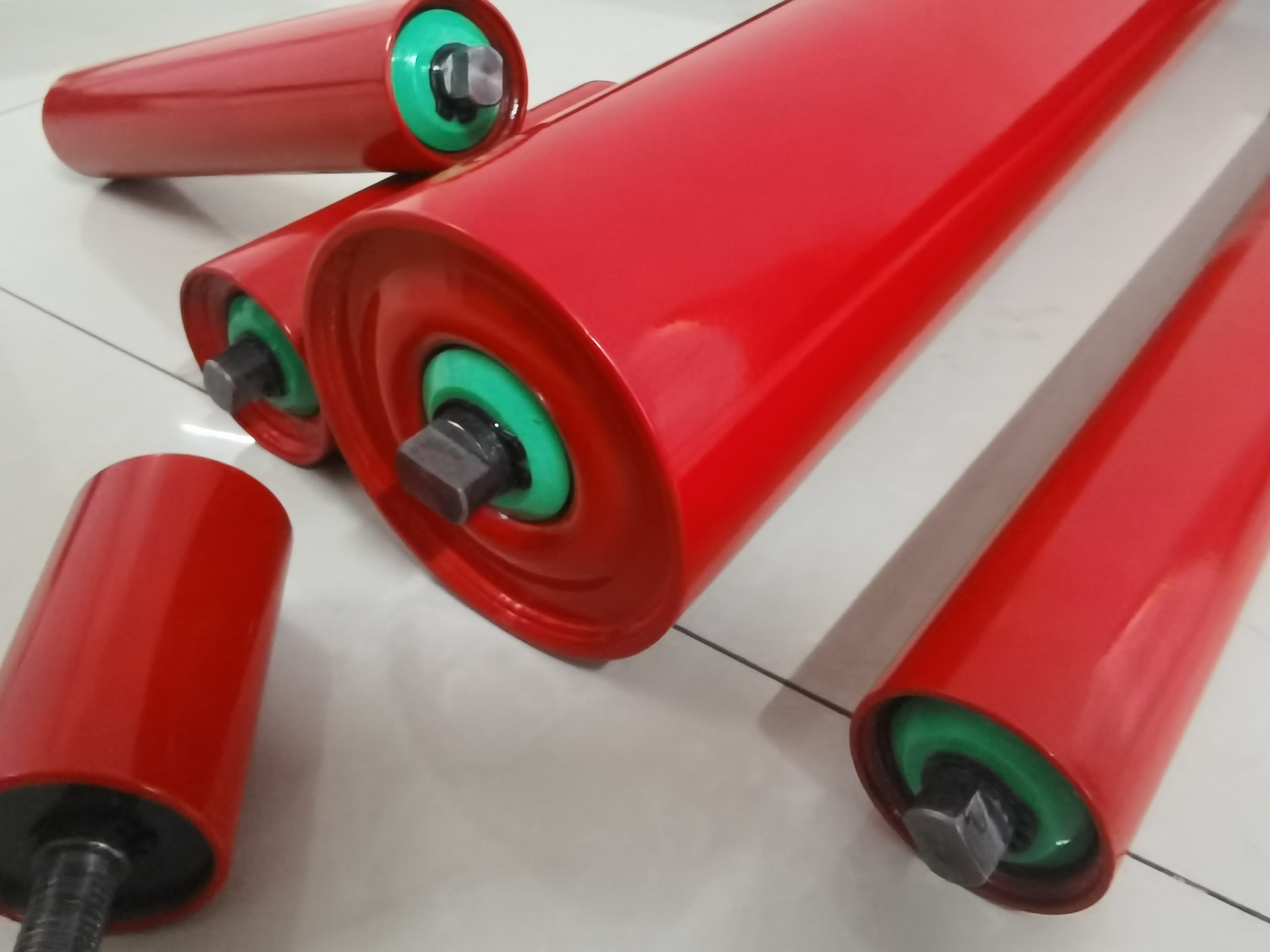

Heavy Duty Gravity Roller Idler Steel Conveyor Roller
Product Description:
1. Roller idlers Dia 89mm-219mm, length 150-3500mm, which are used in the steel industry, harbor, coal industry, power industry, cement industry, etc
2. Tube: Q235
3. Shaft: 45# STEEL
4. Bearing: Double Row Deep Groove Ball Bearing 2RS&2Z with C3 clearance.
5. Seals: Grease retaining inner seal with Multi-stage Labyrinth and Retention Cap with Outboard
Rubbing Flinger Seal.
6. Lubrication: Grease is Lithium soap type grease with Rust Inhibitors.
7. Welding: CO2 gas shielded arc welding end
8. Painting: ordinary painting, hot galvanized painting, electric static spraying painting, baked painting
the use of roller conveyor skills
1. It is easy to connect and transition between roller lines. Multiple roller lines and other conveying equipment or special machines can be used to form a complex logistics conveying system to fulfill various technological needs.
2. The roller conveyor can transport a single piece of material with a large weight, or withstand a large impact load.
3. The structure of the roller conveyor is diverse. According to the driving mode, the roller conveyor can be divided into a power roller line and an unpowered roller line. According to the layout, it can be divided into a horizontal conveyor roller line, an inclined conveyor roller line and a turning conveyor roller line. It can also be specially designed according to customer requirements to meet various requirements of various customers.
4. Simple structure, easy to use and maintain.
5. The accumulation roller can be used to realize the accumulation and transportation of materials.
6. Roller conveyor is suitable for conveying various kinds of boxes, bags, pallets and other goods. Bulk materials, small items or irregular items need to be transported on pallets or in turnover boxes.
Conveyor roller parameters
| Product name | Conveyor roller, conveyor idler |
| Lift time | 50000 hours |
| Production capacity | As usual 600 pieces/day |
| Diameter & Length | Dia: 76-219mm, Len: 190-3500mm |
| Tube | Q235 carbon steel |
| Shaft | 45# Cold drawing round steel, Dia: 20mm, 30mm , 35mm, 40mm |
| Bearing | Single and double row deep groove ball bearing 2RZ and 2Z with C3 clearance |
| Bearing No. | 6204, 6205, 6305, 6306, 6307, 6308, 6309, 6310 |
| Seals | Grease retaining inner seal with multi-stage labyrinth and retention cap with outboard rubbing flinger seal |
| Welding | Mixed gas shielded arc welding end |
| Finish | Painting/rubber/steel screw/galvanized |
| Standard | ISO/BS/JIS/DIN/CEMA/Australia |
| Material feature | Water, wear, dust and corrosion resistance |
| Certifications | ISO9001/BV/SGS |
| Application | Harbor & port, coal, mining, quarry, power industry, cement plant etc |
Conveyor Steel Roller Application
Conveyor steel roller is an important component for light to heavy industry bulk material handling equipment,
such as overland conveyors, coal-conveyors, high-speed trough belt conveyor system projects,
crushing and screening.
These equipment are widely used in coal and lignite mining, cement, quarries, tunneling,
power plants installation, ports, salt, iron ore, process plants and fertilizers, sugar plants, and recycling.
